Ra-01 LoRa Module 410-525 MHz (Chinese Version)

Details

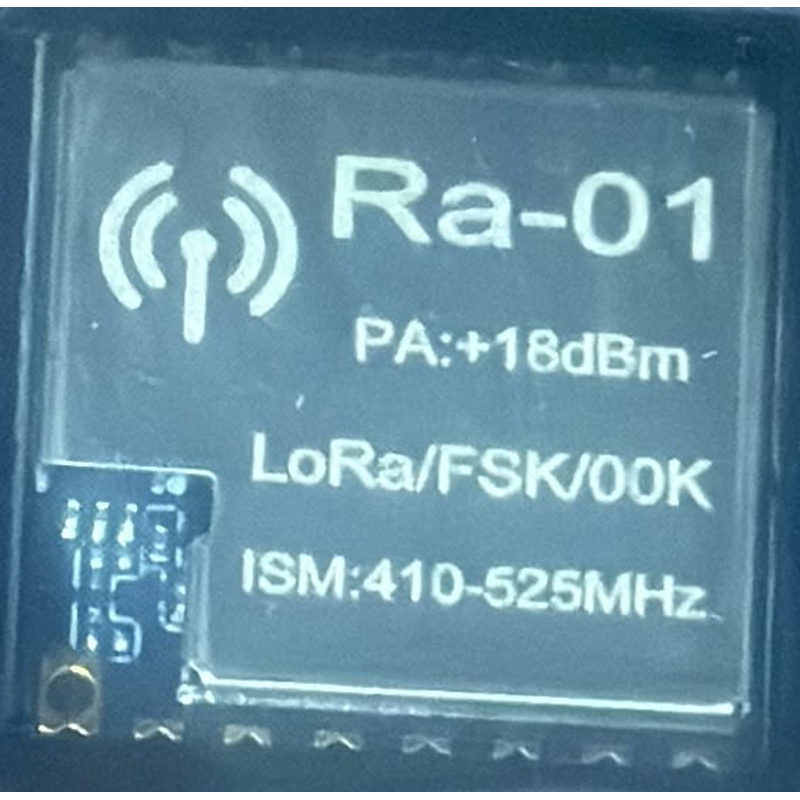

Compact LoRa radio module for long-range, low-power links such as sensors, meter reading and remote control. It connects to your MCU over SPI. This is the Chinese version: it is marked Ra-01 but does not carry the Ai-Thinker name or logo. The first photo shows the actual module; the second is a reference image of the Ai-Thinker Ra-01. Specifications and the datasheet link are from the Ai-Thinker Ra-01, so check them against your own design. Antenna is not included. Never transmit without an antenna connected. Use this module within the radio rules that apply in your area.

Specifications

• Frequency: 410-525 MHz
• Modulation: LoRa, FSK, OOK
• Transmit power: +18 dBm (18 ±1 dBm maximum)
• Receive sensitivity: down to -141 dBm
• Interface: SPI, half duplex, up to 300 Kbps
• Supply: 2.5-3.7 V, typical 3.3 V
• Current at 433 MHz: 93 mA transmit, 12.15 mA receive, 1.6 mA standby
• Operating temperature: -30 °C to +85 °C
• Size: 17 x 16 x 3.2 mm, SMD-16
• Weight: 0.45 g
