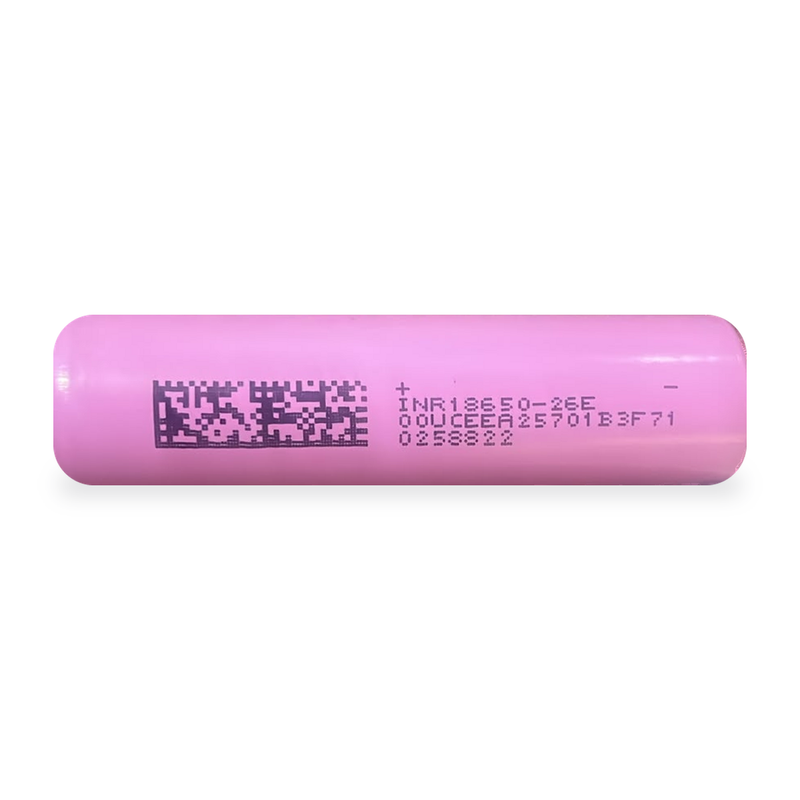

DMEGC INR18650-26E 2600mAh Li-ion Cell

18650 Li-ion cell, 2600 mAh typical, 3.6 V nominal, flat top, unprotected

₹168.74

₹143.00 + 18% GST · Delivery ₹60, free above ₹999

In stock: 3 left

Datasheet →

HSN 85076000

Details

DMEGC INR18650-26E rechargeable lithium-ion 18650 cell with a BIS mark printed on the cell (IS 16046 Part 2 / IEC 62133-2:2017, R-41183504). Sold as a single loose cell for battery packs and IoT builds. Safety: this is a bare cell with no protection circuit. Use it with a suitable BMS or protected charger. Do not short, puncture, overcharge or expose it to heat.

Specifications

Capacity: 2600 mAh typical, 2500 mAh minimum
Nominal voltage: 3.6 V
Rated discharge: 7.8 A (manufacturer figure)
Size: about 18.45 mm diameter x 65.2 mm height
Weight: about 47 g
Cycle life: 1000 cycles (manufacturer figure)
Flat top, no protection circuit
